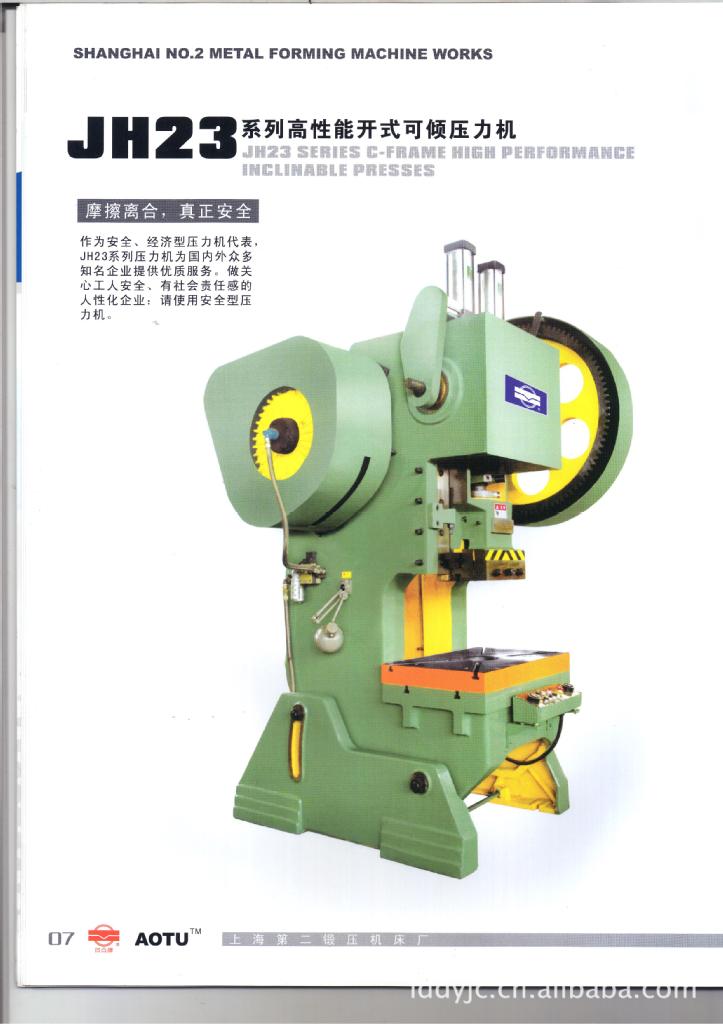

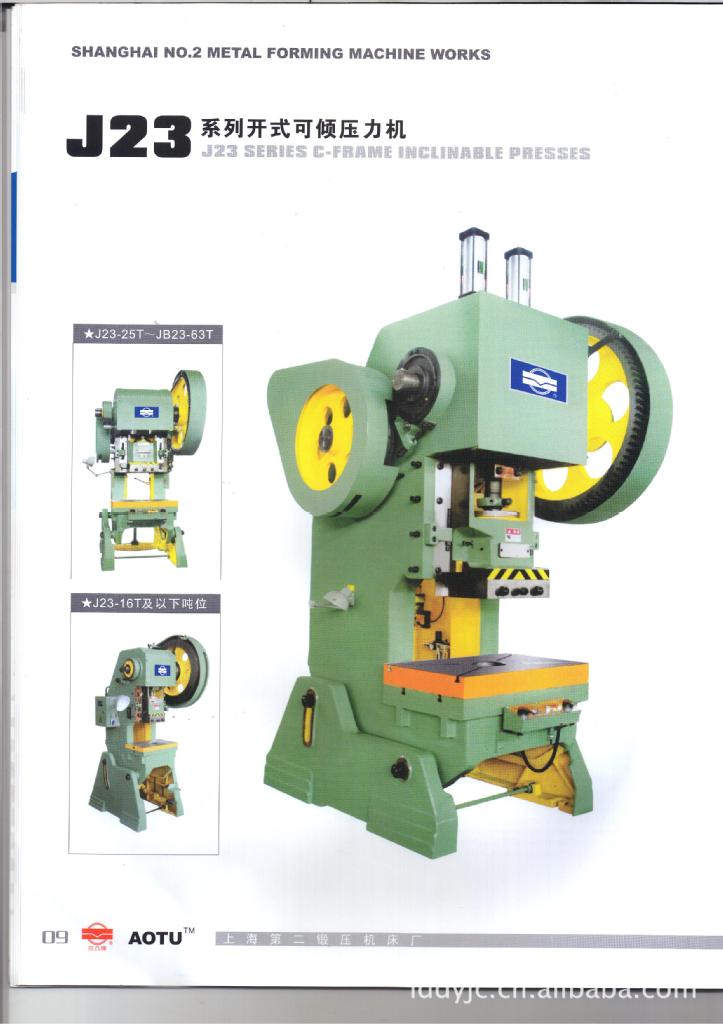

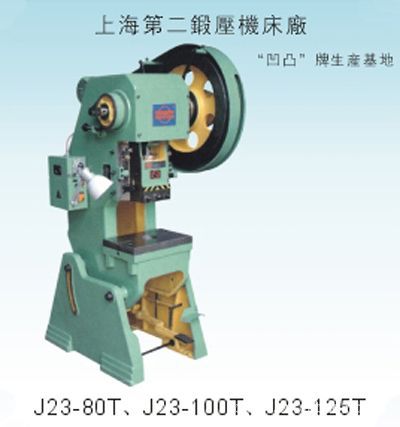

JH23系列高性能开式可倾压力机的性能特点 |
技术参数 |
| 技术参数 | 单位 Unit | JH23-16 | JH23-25 | JH23-35 | JH23-40 | JH23-63 | JH23-80 | JH23-100 | |
| Specifications | |||||||||
| 滑块公称压力 | KN | 160 | 250 | 350 | 400 | 630 | 800 | 1000 | |
| Nominal Capacity | |||||||||
| 公称力行程 | mm | 2 | 2.5 | 3.5 | 6 | 7 | 7 | 7 | |
| Nominal Stoke | |||||||||
| 滑块行程 | mm | 55 | 65 | 80 | 90 | 110 | 120 | 140 | |
| Nominal Stoke | |||||||||
| 行程次数 | times/ | 120 | 80 | 60 | 50 | 50 | 38 | 38 | |
| Slide Strokes Pre Minute | min | ||||||||
| 封闭高度 | mm | 220 | 270 | 290 | 320 | 390 | 440 | 480 | |
| Maximum Die Set Height | |||||||||
| 封闭高度调剂量 | mm | 45 | 55 | 60 | 65 | 80 | 90 | 100 | |
| Die Height Adjustment | |||||||||
| 滑块中心线至机距离 | mm | 160 | 200 | 220 | 250 | 310 | 350 | 380 | |
| Throat Depth | |||||||||
| 立柱距离 | mm | 220 | 270 | 280 | 340 | 420 | 450 | 560 | |
| Distance Be tween Uprights | |||||||||
| 滑块底面尺寸 | 左右 | mm | 200 | 250 | 250 | 300 | 400 | 450 | 540 |
| Slide Bottom Size | L×R | ||||||||
| 前后 | mm | 180 | 220 | 220 | 260 | 360 | 360 | 480 | |
| F×B | |||||||||
| 模柄孔尺寸 | 直径Dia | mm | 40 | 40 | 40 | 50 | 50 | 60 | 60 |
| Stemhole Size | 深度Depth | mm | 60 | 60 | 60 | 70 | 70 | 75 | 75 |
| 工作台尺寸 | 左右 | mm | 450 | 560 | 610 | 700 | 860 | 950 | 1080 |
| Bolster Size | L×R | ||||||||
| 前后 | mm | 300 | 370 | 400 | 460 | 570 | 650 | 710 | |
| F×B | |||||||||
| 工作台板厚度 | mm | 40 | 50 | 60 | 65 | 80 | 100 | 120 | |
| Bolster Thickness | |||||||||
| 最大倾斜角度 | ° | 35 | 30 | 30 | 30 | 20 | 20 | 15 | |
| Max.Angle Of Inclination | |||||||||
| 工作台离地面距离 | mm | 750 | 800 | 815 | 850 | 850 | 850 | 850 | |
| Bolster Surface Height | |||||||||
| 外形尺寸 | 前后 | mm | 1200 | 1345 | 1462 | 1750 | 1930 | 2060 | 2404 |
| Overall Dimensions | F×B | ||||||||
| 左右 | mm | 1050 | 1170 | 1195 | 1376 | 1560 | 1915 | 2180 | |
| L×R | |||||||||
| 高 H | mm | 1960 | 2132 | 2215 | 2488 | 2740 | 3290 | 3625 | |
| 地脚螺拴距离 | 前后 | mm | 780 | 920 | 1020 | 1060 | 1300 | 1360 | 1550 |
| Distance Between Foundation Bolts | F×B | ||||||||
| 左右 | mm | 450 | 600 | 650 | 750 | 920 | 1010 | 1130 | |
| L×R | |||||||||
| 电动机功率 | KW | 1.5 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | |
| Motor Power | |||||||||
| 重量 Weight(Approximate) | KG | 1185 | 2400 | 3250 | 4350 | 5640 | 8750 | 11600 | |
