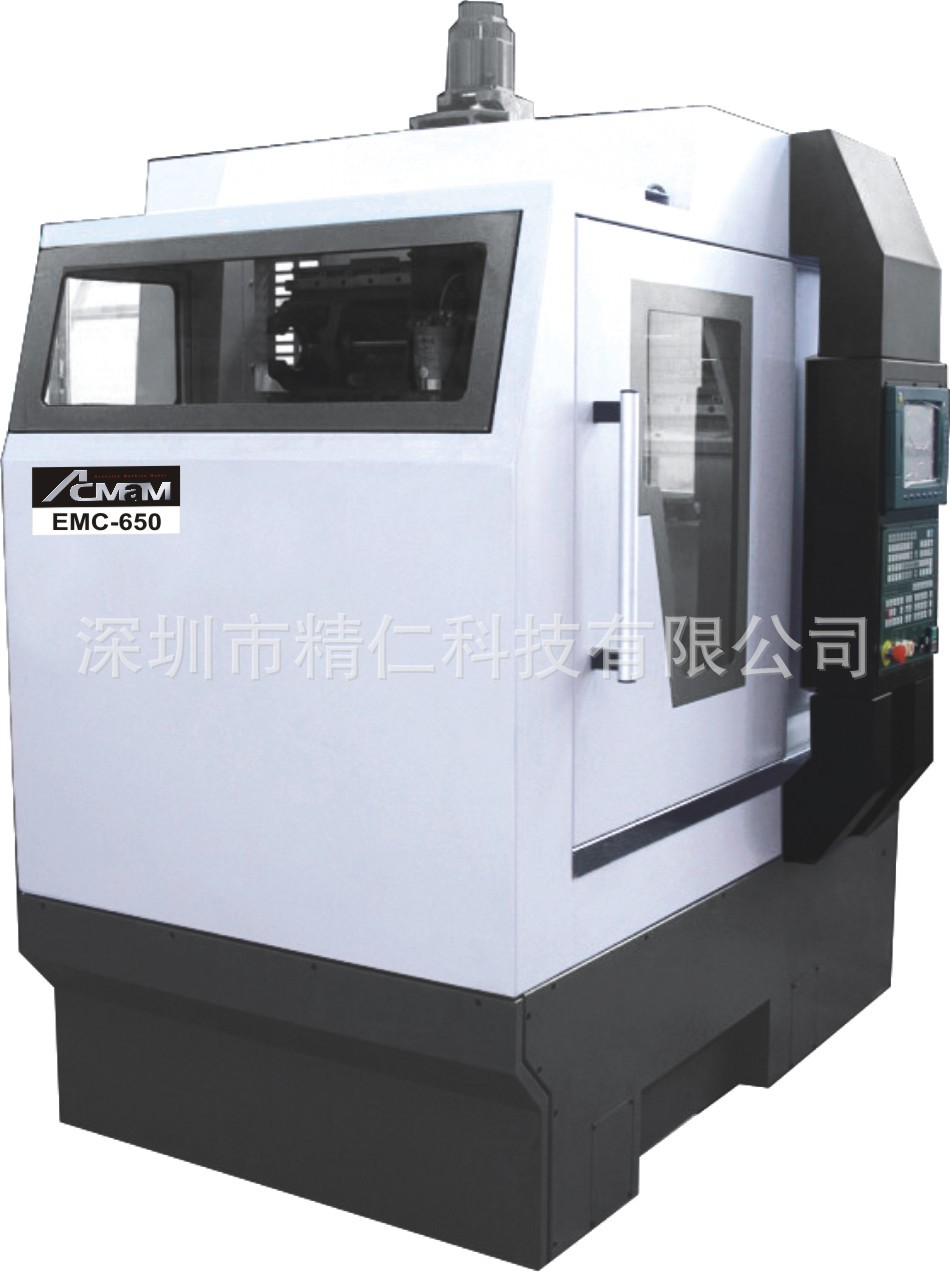

specification | EMC-650 |
X轴行程X - Axis Travel | 600mm |
Y轴行程Y - Axis Travel | 500mm |
Z轴行程Z - Axis Travel | 250/(300OP)mm |
主轴端面至工作台距离Spindle Nose To Table | 120-370mm |
工作台尺寸Table Size | 650*500mm |
最大荷重Maximum Table Load | 300kg |
刀具锥度Spindle Taper | ER25/(BT30 OP) |
转速Spindle RPM | 24000/(30000rpm OP) |
传动方式Type Of Driving | 内藏式（Buil-int TYPE） |
主轴马力Spindle Motor | 4/(7.5kw OP) |
轴向马达马力（X/Y/Z）X.Y.Z Axis Servo Motor | 750kw |
三轴快递进给（X/Y/Z）X.Y.Z Axic Rapid Feed Rate | 15m/min |
最大切削进给速度Max Cutting Feed Rate | 10m/min |
定位精度Positionning Accuracy | 0.005/300mm |
重复精度Repeat Positionning Accuracy | 0.003mm |
机械重量（净重/毛重）Machine Weight | 2800kg |
耗电量Power Capacity | 10kvw |
占地面积（长*宽*高）Floor Space Measurement | 1690*1570*2280mm |
