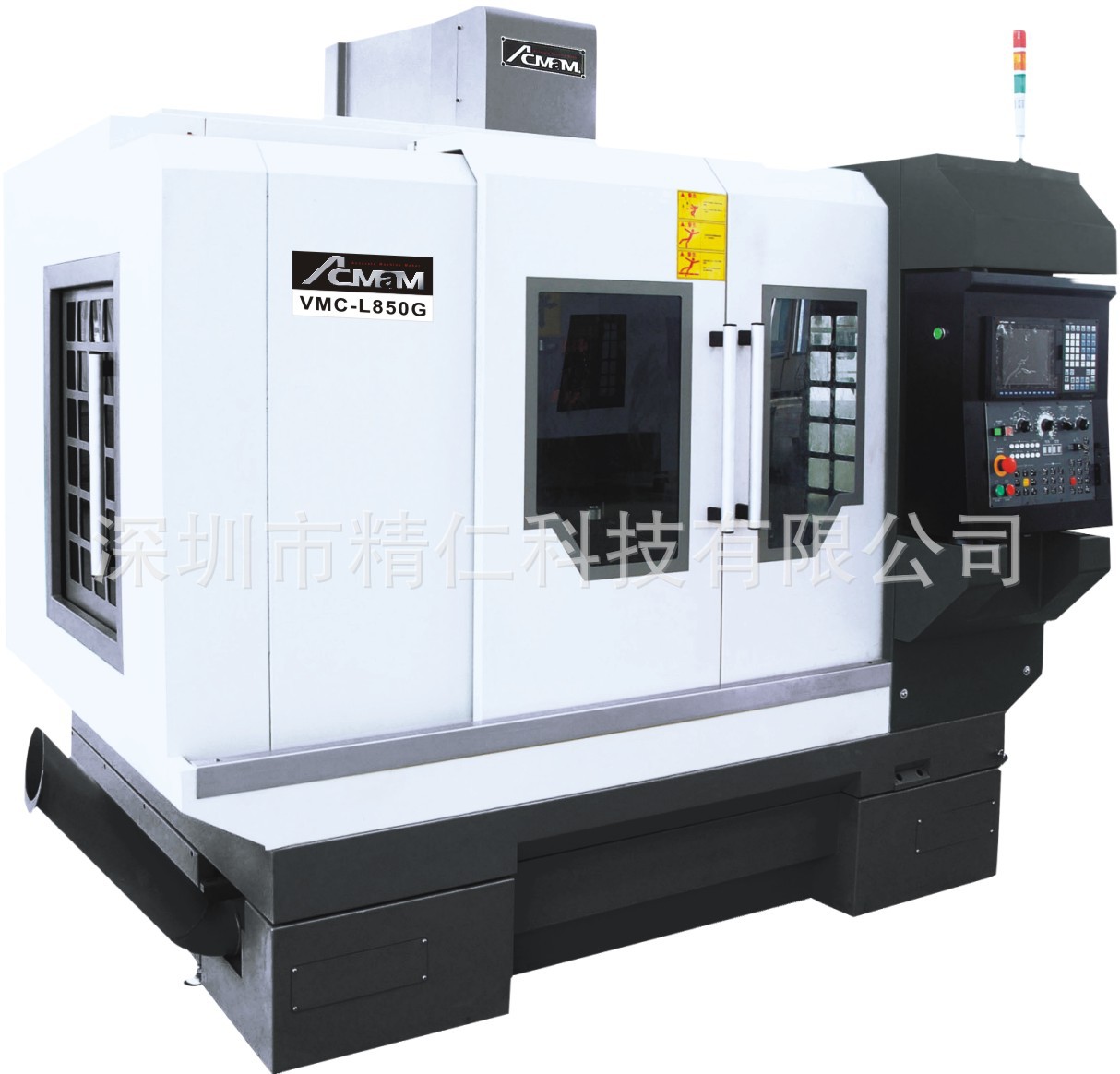

规格specification | VMC-L850G |
X轴行程X - Axis Travel | 800mm |
Y轴行程Y - Axis Travel | 550mm |
Z轴行程Z - Axis Travel | 500mm |
主轴端面至工作台距离Spindle Nose To Table | 120-620mm |
主轴中心至滑道面距离Spindle Center To Z-Rail | 580mm |
工作台尺寸Table Size | 580*510mm |
T型槽（槽数*宽*间距）T - Slot | 5*18mm*90mm |
最大荷重Maximum Table Load | 550kg |
刀具锥度Spindle Taper | BT40 |
转速Spindle RPM | 800rpm/12000rpm |
传动方式Type Of Driving | 皮带式Belt Type/直结式Direct Type |
X、Y轴快送X. Y Axis Rapid Feed Rate | 24m/min |
Z轴快送Z Axis Rapid Feed Rate | 24m/min |
X、Y、Z最大切削进给速度 X. Y. Z Max. Cutting Feed Rate | 24m/min |
斗笠式Geneva Type (Tool to Tool) | 12T (7sec) |
刀臂式Arm Type (Tool to Tool) | 24T (3sec) |
主轴马达Spindle Motor | SJ-PF7.5(7.5kw)/ Beta 8 (7.5kw) |
X、Y轴向马达X. Y Servo Motor | HF-204 (2.0kw)/ Beta 12 (1.8kw) |
Z轴向马达Z Servo Motor | HF-204 (2.0kw)/ Beta12(1.8kw) |
切削水马达Coolant Pump Motor | 670W |
刀库马达Motor of tool Change System | 斗笠式Geneva Type 60W /刀臂式Arm Type 200W |
排屑马达Chip Conveyor Motor | 1/4HP |
定位精度（JIS标准）Positioning Accuracy (JIS) | 0.005mm/300mm |
重复精度（JIS标准） Repeat Positioning Accuracy (JIS) | 0.003mm |
机械占地面积（长*宽*高） Floor Space Measurement | 2700*2300*2500 |
机械包装尺寸（长*宽*高） Packaging Measurement | 2800*2400*2600 |
机械重量（约）Approximate Weight | 6200kg |
