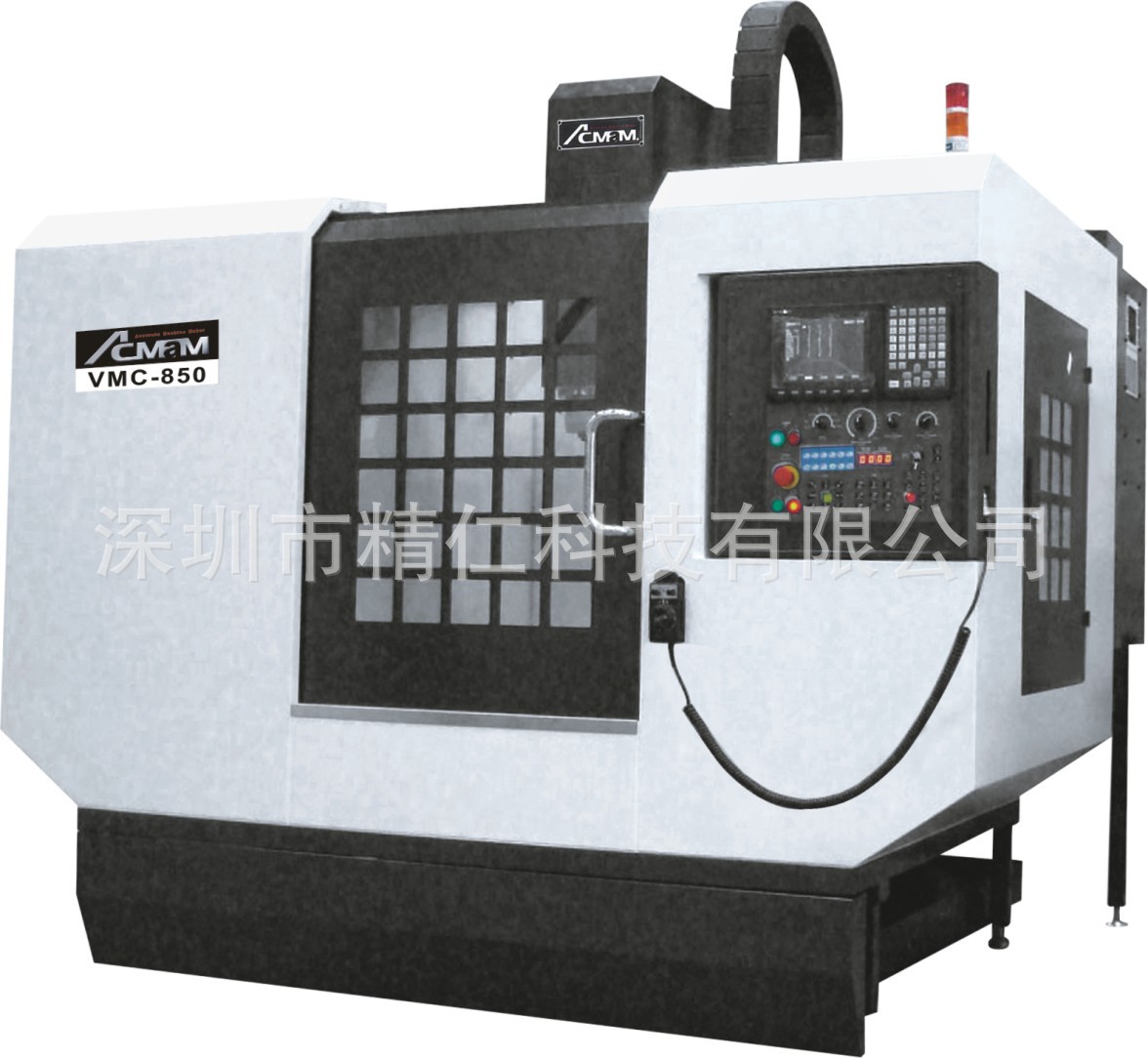

规格specification | VMC-850 |
X轴行程X - Axis Travel | 820mm |
Y轴行程Y - Axis Travel | 520mm |
Z轴行程Z - Axis Travel | 510mm |
主轴端面至工作台距离Spindle Nose To Table | 140-650mm |
主轴中心至滑道面距离Spindle Center To Z-Rail | 520mm |
工作台尺寸Table Size | 950*450 |
T型槽（槽数*宽*间距）T - Slot | 4*18mm*100mm |
最大荷重Maximum Table Load | 600kg |
刀具锥度Spindle Taper | BT40 |
转速Spindle RPM | 8000rpm/12000rpm |
传动方式Type Of Driving | 皮带式Belt Type/直结式Direct Type/ |
X、Y轴快送X. Y Axis Rapid Feed Rate | 20m/min |
Z轴快送Z Axis Rapid Feed Rate | 20m/min |
X、Y、Z最大切削进给速度 X. Y. Z Max. Cutting Feed Rate | 8m/min |
斗笠式Geneva Type (Tool to Tool) | 12T |
刀臂式Arm Type (Tool to Tool) | 24T |
主轴马达Spindle Motor | SJ-PF7.5(7.5kw)/ Beta 8 (7.5kw) |
X、Y轴向马达X. Y Servo Motor | HF-204 (2.0kw)/ Beta 12 (1.8kw) |
Z轴向马达Z Servo Motor | HF-204 (2.0kw)/ Beta12(1.8kw) |
切削水马达Coolant Pump Motor | 670W |
刀库马达Motor of tool Change System | 斗笠式Geneva Type 60W /刀臂式Arm Type 200W |
排屑马达Chip Conveyor Motor | 1/4HP |
定位精度（JIS标准）Positioning Accuracy (JIS) | + /-0.005mm/300mm |
重复精度（JIS标准） Repeat Positioning Accuracy (JIS) | + /-0.003mm |
机械占地面积（长*宽*高） Floor Space Measurement | 2600*2200*2500 |
机械包装尺寸（长*宽*高） Packaging Measurement | 2700*2300*2600 |
机械重量（约）Approximate Weight | 4600kg |
