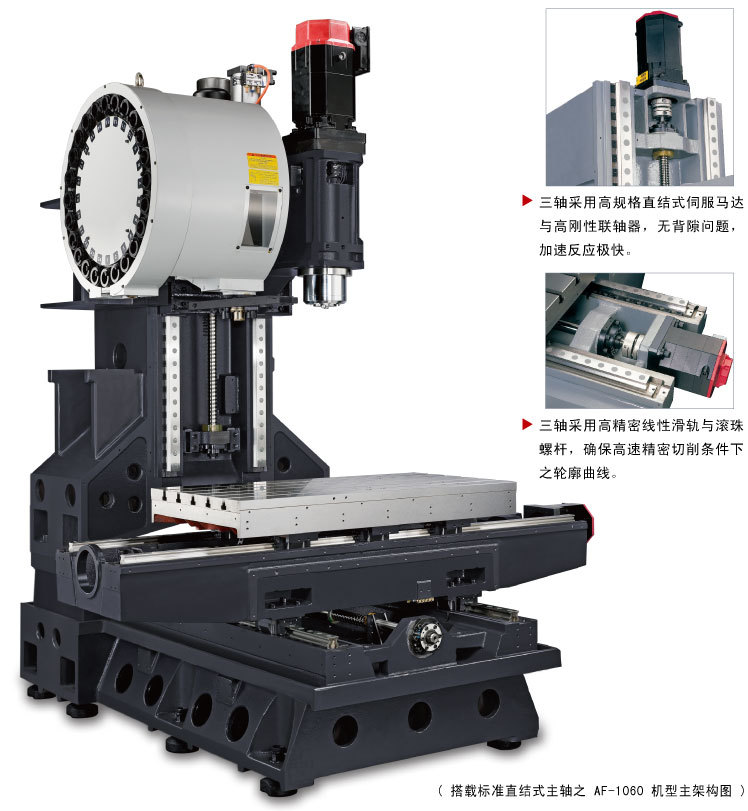

供应台湾台中绮发精机股份有限公司图1

供应台湾台中绮发精机股份有限公司图2

供应台湾台中绮发精机股份有限公司图3

供应台湾台中绮发精机股份有限公司

2014-09-25 02:599270已售

价格	￥330000.00
发货	上海付款后24小时内
品牌	品牌
型号	型号
重量	重量
库存	888台起订1台

产品详情

供应台湾台中绮发精机股份有限公司

Specifications

ITEM		MT-500
Table	Table size	500 x 320
Table	Max. table load	200 kg
Travel Range	Max. travel range X/Y/Z-axis	450 / 300 / 300 (17.7 / 11.8 / 11.8)
	Table to spindle nose	170 ~ 470 (6.7~18.5)
	Rapid traverse rate of X/Y/Z-axis	48 / 48 / 60 m /min (1889 / 1889 / 1889 ipm)
Spindle	Spindle taper	BT30
	Spindle speed	10,000 rpm
	Pull stud	MAS403 P30T-1(45°)
Tool Magazine	Tool capacity	12 pcs
	Max. tool weight (kgs)	3 (6.6 lb)
	Max. tool length	200
	ATC seppd (T-T)/ (C-C)	1.6 sec./ 2.5 sec.
Drive Motor	Spindle motor	3.7/2.2 kW (5/2.9 HP)
Drive Motor	Servo motor of X/Y/Z-axis	1.6 / 1.6 / 3.0 kW (2.16 / 2.16 / 4.05 HP)
Miscellaneous	Floor space (mm)	1,200 × 2,230 × 2,480 (47.2 × 87.8 × 97.6)
Miscellaneous	Net weight (kgs)	2100

*Specifications are subject to change without notice

Standard

• FANUC 0i-MC controller	• Direct drive spindle system
• Toolbox and tools	• Work light
• Automatic lubrication system	• Dual electric cases (Heat insulated)
• Tool coolant system	• Dual -color alarm light
• Spindle air blow device	• Screw-type chip conveyer
• Leveling bolts and pads	• TFT LCD

Optional

• Mitsubishi 64ASM controller	• Oil /Water partition
• Transformer, stabilizer	• Auto. Tool length measurement
• Work piece air blow system	• Damaged cutting tool sensor
• 15,000 rpm high speed spindle (with spindle oil cooling system)	• Full enclosed splash guard
• Low inertia spindle motor (Mitsubishi)	• Oil mist collector
• Coolant through spindle (CTS)	• Auto. door
• CTS filter	• High speed & high accuracy machining control mode G05 P10000 (Mitsubishi)
• Air gun / Water gun	• The 4th axis (NC indexing Table)
• Surround chip flushing system	• Fifth axis (4th axis with sloped rotary table)

"
