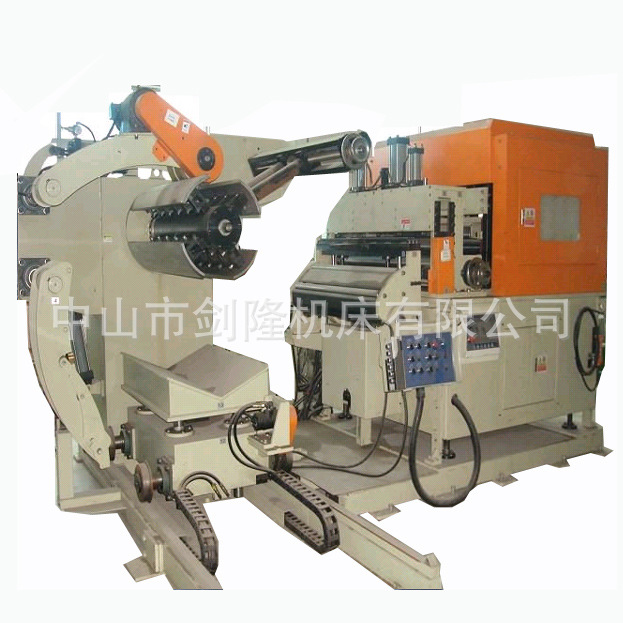

三机一体NC精密料架矫直送料机
标准配置
1.光电料弧控制系统
2.四只齿轮组
3.送料滚轮及矫正滚轮镀铬硬铬处理
4.压料手臂装置
5.送料线高度采用先进轮调整装置
6.日制百分表
7.料弧控制滚轮
8.卷料头压平装置
9.送料出口导料架装置
10.料幅调整挡轮装置
11.变压器
12.PLC三菱程序控制送料系统
TNCF4
规格/SPECIFICATIONS
型式Model 项目 | TNCF4-300 | TNCF4-400 | TNCF4-500 | TNCF4-600 | TNCF4-700 | TNCF4-800 |
材料宽度Width of Materia(mm) | 75-300 | 75-400 | 75-500 | 75-600 | 75-700 | 75-800 |
材料厚度Thickness of Material(mm) | 0.5-4.5 | |||||
材料重量Max.coil Weight(kg) | 3000 | 5000 | ||||
卷料内径Coil.D.(mm) | 500 | |||||
卷料外径Max.coil O D.(mm) | 1200 | |||||
最大速度Max.Speed(m/min) | 16 | |||||
送料精度Feed pitch Accuracy(mm) | ±0.15 | |||||
送料滚轮Feed Roll | Upper1/lower1 | |||||
矫正滚轮Work Roll | Upper4/lower3 | |||||
电压Power Supply | 220V AC 60Hz | |||||
空气电源Air power supply | 5kg/cm2 | |||||
料头扩张方式Uncoiler Expansion | 油压Hydraulic | |||||
伺服电动机Sewo Motor(kw) | AC2.9 | AC4.4 | AC7.5 | |||
料架马达Uncoiler Motor(kw) | 2.2KW | 3.7KW | ||||
矫正能力STRAIGHTENING PERFORMANCE
型号 | 0.3 | 1.0 | 1.6 | 2.3 | 2.5 | 2.8 | 3.2 | 4.5 |
TNCF4-300 | 300 | 150 | ||||||
TNCF4-400 | 400 | 300 | 150 | |||||
TNCF4-500 | 500 | 400 | 300 | 150 | ||||
TNCF4-600 | 600 | 500 | 400 | 300 | 150 | |||
TNCF4-700 | 700 | 600 | 500 | 400 | 300 | 150 | ||
TNCF4-800 | 800 | 600 | 500 | 400 | 300 | 150 | ||
TNCF5
规格/SPECIFICATIONS
型式Model 项目 | TNCF5-400 | TNCF5-500 | TNCF5-600 | TNCF5-700 | TNCF5-800 | TNCF5-1000 |
材料宽度Width of Materia(mm) | 100-400 | 100-500 | 100-600 | 100-700 | 100-800 | 100-1000 |
材料厚度Thickness of Material(mm) | 0.6-6.0 | |||||
材料重量Max.coil Weight(kg) | 3000 | 5000 | ||||
卷料内径Coil.D.(mm) | 500 | |||||
卷料外径Max.coil O D.(mm) | 1200 | |||||
最大速度Max.Speed(m/min) | 16 | |||||
送料精度Feed pitch Accuracy(mm) | ±0.15 | |||||
送料滚轮Feed Roll | Upper1/lower1 | |||||
矫正滚轮Work Roll | Upper4/lower3 | |||||
电压Power Supply | 220V AC 60Hz | |||||
空气电源Air power supply | 5kg/cm2 | |||||
料头扩张方式Uncoiler Expansion | 油压Hydraulic | |||||
伺服电动机Sewo Motor(kw) | 4.4 | 5.5 | 7.5 | |||
料架马达Uncoiler Motor(kw) | 2.2KW | 3.7KW | ||||
矫正能力STRAIGHTENING PERFORMANCE
型号 | 0.6 | 1.0 | 1.3 | 1.6 | 2.0 | 2.3 | 2.5 | 3.2 | 4.0 | 4.5 | 5.0 | 6.0 |
TNCF5-400 | 400 | 350 | 300 | |||||||||
TNCF5-500 | 500 | 400 | 350 | 300 | ||||||||
TNCF5-600 | 600 | 500 | 400 | 350 | 300 | |||||||
TNCF5-700 | 700 | 600 | 500 | 400 | 350 | 300 | ||||||
TNCF5-800 | 800 | 700 | 600 | 500 | 400 | 350 | 300 | |||||
TNCF5-1000 | 1000 | 800 | 700 | 600 | 500 | 400 | 350 | 300 | ||||
